Electric Out-swing door system (SOD100E)

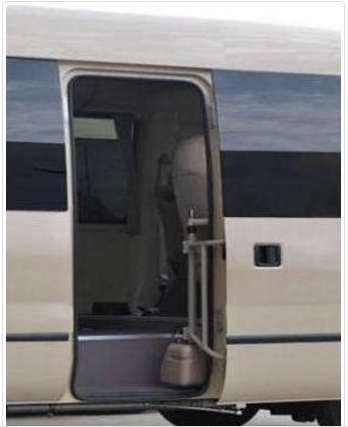

For electric power swing-out door system, door cylinder is compact in structure, high efficiency and can be driven by hand or electric power with fine features of self-locking and anti-clamp. The integrated protection circuit acts as supervising and guarding the motor against overloading, overcurrent and overheating so as to prolong its service life. It applies to various kinds of bus/coaches without pneumatic power, especially to buses, medium and top grade air-condition passenger buses.
For electric power swing-out door system, door cylinder is compact in structure, high efficiency and can be driven by hand or electric power with fine features of self-locking and anti-clamp. The integrated protection circuit acts as supervising and guarding the motor against overloading, overcurrent and overheating so as to prolong its service life. It applies to various kinds of bus/coaches without pneumatic power, especially to buses, medium and top grade air-condition passenger buses.
For electric power swing-out door system, door cylinder is compact in structure, high efficiency and can be driven by hand or electric power with fine features of self-locking and anti-clamp. The integrated protection circuit acts as supervising and guarding the motor against overloading, overcurrent and overheating so as to prolong its service life. It applies to various kinds of bus/coaches without pneumatic power, especially to buses, medium and top grade air-condition passenger buses.
Components:

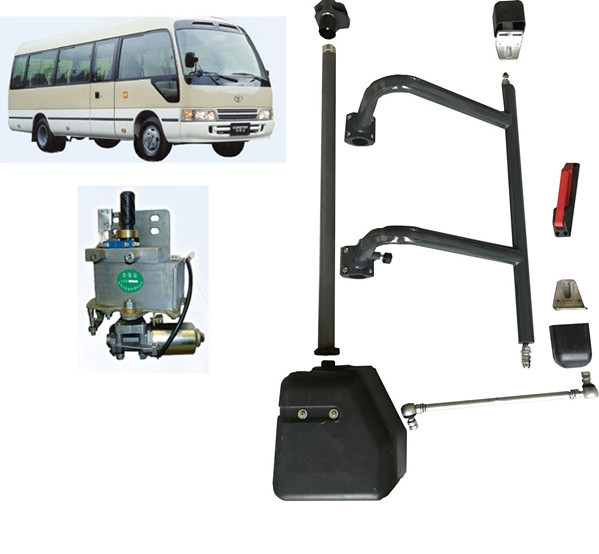

Electric power door system include door panels and door assembly parts (swing-arm, motor, drive shaft etc..)
Technical Specification:
| Control voltage | DC12V(24V) |
| Rising height | 16mm |
| Motor power | 80w |
| Loading capacity | 1000N |
| Swing direction | Forward/Backward |
| Ambient temp. | -40℃—+60℃ |
| Max. swing angle | 140° |
| Anti-clamp torque | ≤38N.m |
