Automotive Wireless Charging Pad
As a trusted partner to OEM vehicle manufacturers, we present our 3-coil automotive wireless charging pad—engineered for seamless front-mount integration in commercial vehicles, buses, golf carts, and electric fleets. This automotive wireless charger variant leverages multi-coil flexibility to simplify cabin design while meeting rigorous vehicle-grade standards.
0.00
0.00
As a trusted partner to OEM vehicle manufacturers, we present our 3-coil automotive wireless charging pad—engineered for seamless front-mount integration in commercial vehicles, buses, golf carts, and electric fleets. This automotive wireless charger variant leverages multi-coil flexibility to simplify cabin design while meeting rigorous vehicle-grade standards.
Product Description
3-Coil Automotive Wireless Charging Pad: Flexibility & Reliability for OEM Cabin Design
As a trusted partner to OEM vehicle manufacturers, we present our 3-coil automotive wireless charging pad—engineered for seamless front-mount integration in commercial vehicles, buses, golf carts, and electric fleets. This automotive wireless charger variant leverages multi-coil flexibility to simplify cabin design while meeting rigorous vehicle-grade standards.
Unrestricted Device Positioning
The three-coil design eliminates the need for precise phone alignment, adapting to diverse center console layouts in passenger and commercial vehicles. This reduces OEM design constraints and enhances user experience—no more fumbling to “find the sweet spot.”
Adaptive Power for All Devices
Compatible with Qi-enabled iOS, Android, and HarmonyOS devices, the pad auto-adjusts output across 5W/7.5W/10W/15W max. It supports both wireless and wired charging (via integrated protocols), catering to varied user habits in shared or private vehicles.
Product Features
Technical Parameters | |
Range of Power Supply | 9V～28.5V |
Power | <20W |
Quantity of Coil | 3 |
Standard of Wireless Charing | Qi |
Dimension of Charger | L114mm*W64mm*H14mm |
Working Frequency | 110KHz – 205Khz |
Distance of Wireless Charging | <10mm |
Working Temperature | -30°C～75°C |
Storage Temperature | -40°C～85°C |
Functions | |
Working status indicated by LED | Green: Standby Blue: Charging Red: Fault |
Overvoltage Protection | Automatic activation when the voltage higher than 28.5V |
Surge Protection | YES (with TVS) |
Polarity Reversing Protection | YES |
FOD Detection | YES (LED blinks in bule and green.) |
Over-temperature Protection | YES (with PTC) |
Short Circuit Protection | YES |
Protection Level | IP65 |
Anti-vibration Design | YES |

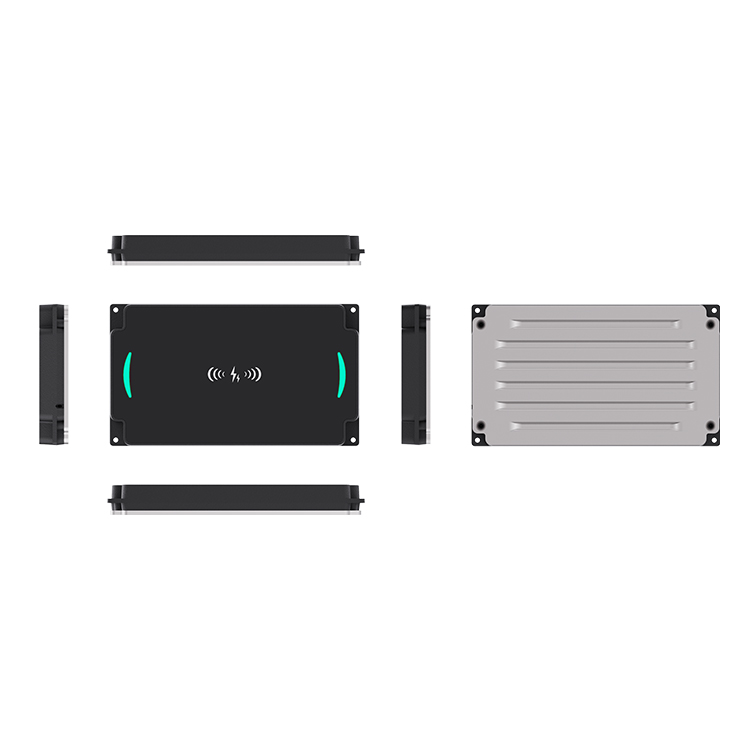

Details Images
Electrical Performance
* Voltage Range: 9–28.5V (stabilizes under fluctuating vehicle power, ideal for electric fleets).
* Form Factor: 64×114×14mm (slim profile for dashboards, armrests, or dedicated charging zones).
* Charging Dynamics: 110KHz–205KHz frequency, <10mm charging distance, and 3-coil efficiency for stable power transfer.
* Form Factor: 64×114×14mm (slim profile for dashboards, armrests, or dedicated charging zones).
* Charging Dynamics: 110KHz–205KHz frequency, <10mm charging distance, and 3-coil efficiency for stable power transfer.
Safety & Durability
* Environmental Protection: IP65 ingress resistance (dust/water) + operating range of -30℃ to 75℃ (survives extreme climates).
* Protective Features: Over-voltage cutoff (28.5V), FOD (foreign object detection), PTC thermal regulation, and anti-vibration design (tested to 15,000 cycles).
* Protective Features: Over-voltage cutoff (28.5V), FOD (foreign object detection), PTC thermal regulation, and anti-vibration design (tested to 15,000 cycles).
Application Scenario
Our 3-coil charging pad excels in:
* Commercial Vehicles & Buses: Supports multi-device charging in shared cabins, with durable design for high-duty cycles.
*Golf Carts & Electric Fleets: Slim form factor integrates into compact interiors, enhancing user convenience.
* Premium Passenger Cars: Adds luxury-grade charging flexibility without compromising cabin aesthetics.
Certifications
Global Compliance
Pre-certified to Qi, CE, UL, FCC, RoHS standards, our pad streamlines market entry for OEMs targeting global markets.
Customization & Integration
* Brand Alignment: Custom enclosures, LED tuning, and power profile adjustments to match vehicle design languages.
* Engineering Collaboration: EMC/EMI optimization, CAN-bus integration support, and pre-validated test kits to reduce development complexity.
* Engineering Collaboration: EMC/EMI optimization, CAN-bus integration support, and pre-validated test kits to reduce development complexity.
Packing & Delivery
Partner with us to integrate a flexible, reliable wireless charging solution into your next-generation vehicles. Contact our team for OEM-specific engineering support.
