Clip-On Automotive Wireless Charger
As a trusted partner to OEM vehicle manufacturers, we present our clip-on wireless charger—engineered for front-mount integration in passenger cars, commercial fleets, and premium vehicles. This automotive wireless charger combines touch-activated clamping, adaptive power, and silent operation to redefine in-cabin device charging.
0.00
0.00
As a trusted partner to OEM vehicle manufacturers, we present our clip-on wireless charger—engineered for front-mount integration in passenger cars, commercial fleets, and premium vehicles. This automotive wireless charger combines touch-activated clamping, adaptive power, and silent operation to redefine in-cabin device charging.
Product Description
Clip-On Wireless Charger: Smart Clamping for OEM Cabin Convenience
As a trusted partner to OEM vehicle manufacturers, we present our clip-on wireless charger—engineered for front-mount integration in passenger cars, commercial fleets, and premium vehicles. This automotive wireless charger combines touch-activated clamping, adaptive power, and silent operation to redefine in-cabin device charging.
Auto-Clamping Mechanism
The touch-sensitive motorized clip deploys silently upon device contact, securing phones firmly without manual adjustment. Its compact 11.5×8×5.5mm form factor integrates seamlessly into air vents or custom mounts, aligning with OEM interior design flexibility.
Adaptive Power for Diverse Devices
Compatible with all Qi-enabled devices (iOS/Android/HarmonyOS), the charger auto-adjusts output across 5W/7.5W/10W/15W max. It operates on 5V/9V via Type-C, ensuring compatibility with varied vehicle electrical systems.
Product Features

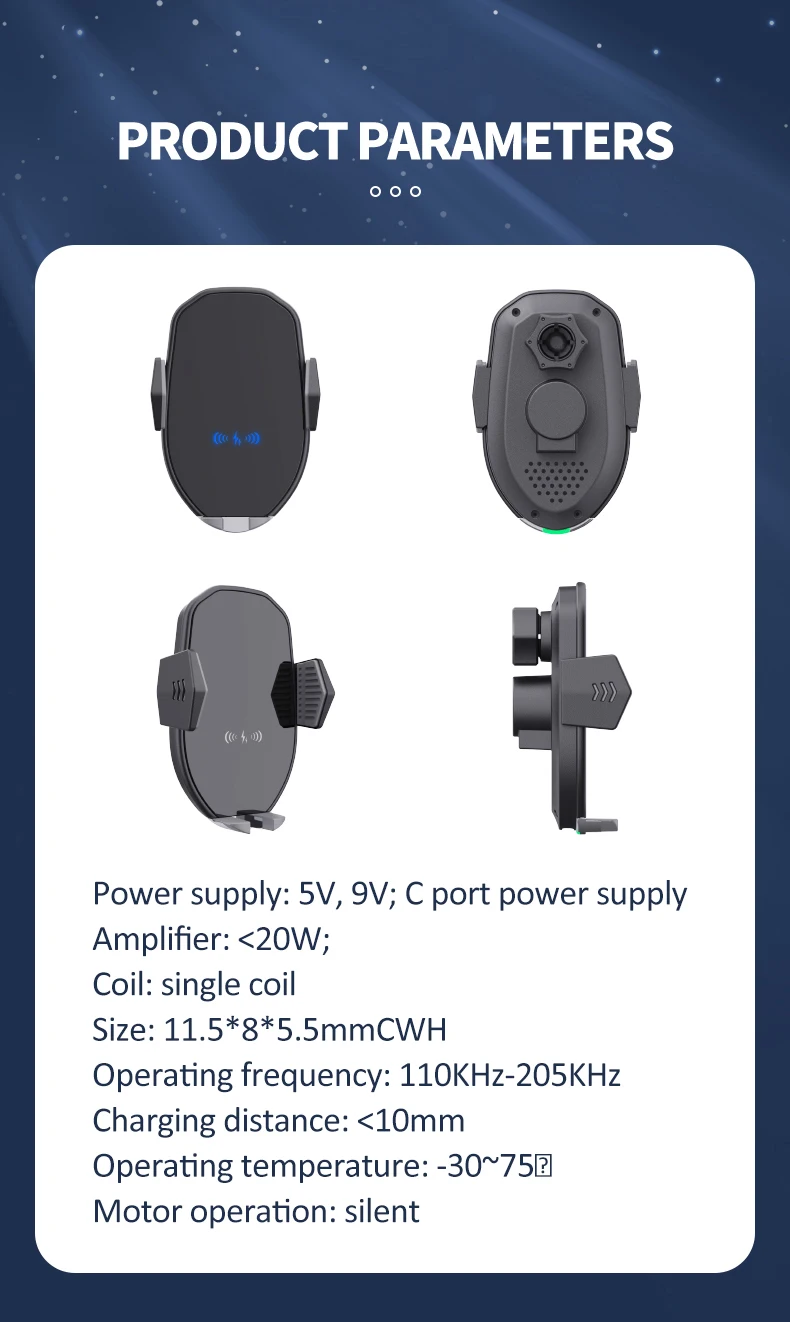

Technical Parameters | |
Range of Power Supply | 5V or 9V via Type-C |
Power | <20W |
Quantity of Coil | 1 |
Standard of Wireless Charing | Qi |
Dimension of Charger | L115mm*W8mm*H5.5mm |
Working Frequency | 110KHz – 205Khz |
Distance of Wireless Charging | <10mm |
Working Temperature | -30°C～75°C |
Storage Temperature | -40°C～85°C |
Functions | |
Working status indicated by LED | Blue: Standby Green: Charging |
Overvoltage Protection | Automatic activation when the voltage higher than 16V |
Surge Protection | YES (with TVS) |
Polarity Reversing Protection | YES |
FOD Detection | YES (LED blinks in bule and green.) |
Over-temperature Protection | YES (with PTC) |
Short Circuit Protection | YES |
Auto opening and closing of clip | YES (By touching) |
Anti-vibration Design | YES |
Details Images
Electrical Performance
* Voltage Range: 5V/9V (Type-C powered, ideal for passenger cars and light commercial vehicles).
* Efficiency: <20W power consumption, 110KHz–205KHz frequency, and <10mm charging distance for stable power transfer.
* Efficiency: <20W power consumption, 110KHz–205KHz frequency, and <10mm charging distance for stable power transfer.
Safety & Durability
* Protective Features: Over-voltage cutoff (16V), TVS surge suppression, reverse polarity protection, FOD (foreign object
detection), and PTC thermal regulation.
* Environmental Resilience: Operates between -30℃ and 75℃, with silent motor design to minimize cabin noise.
detection), and PTC thermal regulation.
* Environmental Resilience: Operates between -30℃ and 75℃, with silent motor design to minimize cabin noise.
Application Scenario
Our clip-on charger excels in:
* Passenger Cars: Enhances driver convenience with auto-clamping and adaptive charging, complementing modern cabin aesthetics.
* Commercial Fleets: Supports hands-free charging for drivers, improving focus and safety during long-haul operations.
* Premium Vehicles: Adds luxury-grade functionality with silent operation and sleek design integration.
Certifications
Global Compliance
Pre-certified to Qi, FCC, RoHS standards, our charger streamlines market entry for OEMs targeting global markets.
Customization & Integration
* Design Flexibility: Branded enclosures, LED tuning, and mount compatibility adjustments to match vehicle design languages.
* Engineering Collaboration: EMC/EMI optimization and pre-validated test kits to reduce development complexity for passenger and commercial vehicle programs.
* Engineering Collaboration: EMC/EMI optimization and pre-validated test kits to reduce development complexity for passenger and commercial vehicle programs.
Packing & Delivery
Partner with us to integrate a smart, reliable wireless charging solution into your next-generation vehicles. Contact our team for OEM-specific engineering support.
